TIMESERT ® USEFUL TOOLS

TAP GUIDES INSURE THAT THREADS ARE SQUARE TO SURFACE.

The lower portion of the tap guide should remain as square as possible to the engine surface.
Turn the tap slowly while making sure the guide remains flush.

TAP GUIDES

METRIC SIZE	PART NO.
M5x0.8	35086
M6x1.0	36105
M7x1.0	37105
M8x1.25	38125
M9x1.25	39125
M10x1.0	30105
M10x1.25	30125
M10x1.5	30155
M11x1.25	31125
M11x1.5	31155
M12x1.25	32125
M12x1.5	32155
M12x1.75	32175
M14x1.5	34155
M14x2.0	34255
M16x1.5	36155
M16x2.0	36205
M18x1.5	38155
M20x1.5	30215
M22x1.5	32255
M24x1.5	32455

INCH SIZE	PART NO.
1/4-20	31420
1/4-28	31420
5/16-18	35168
5/16-24	35168
3/8-16	33816
3/8-24	33824
7/16-14	37164
7/16-20	37162
1/2-13	31213
1/2-20	31225
5/8-18	25885
3/4-10	33415
3/4-16	33416

	For Use in Restricted Areas Ideal for use in areas where a T handle won't fit. Set of 8 sockets fits all number and fractional M.C.T.I. standard taps thru 1/2". A lso fits 1/8" NPT taps and metric taps thru 12mm manufactured to M.C.T.I. standards. Sockets contained on a vinyl holder. Time-Sert taps 4mm to 12mm metric / 4-40 to 1/2 inch. Sockets #1 thru #4 use 1/4 drive, rest use 3/8 drive.

	Three Larger Sizes in a Convenient Set The three largest tap sockets, are now packaged in a three piece set. Ideal for use where a T handle won't fit, especially in restricted areas. For larger, fractional M.C.T.I. standard taps. #9 socket is 5/8" (16mm), #10 is for 11/16" (18mm) and #11 is for 3/4". Sockets contained in a vinyl holder. Time-Sert taps 13mm to 16mm metric / 5/8 to 3/4 inch. use 1/2 drive socket.

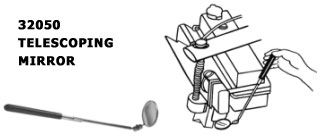

	Enables You To See A round Corners 2 1/4" diameter mirror swivels to any position. Length extends from 10" to 14". Has an insulated vinyl grip.

SPARK PLUG TYPES		WASHER SEAT SPARK PLUG INSERTS copper plated			TAPER SEAT SPARK PLUG INSERTS silver plated
Video instructions		LENGTH		Washer seat PART NO.	LENGTH		Taper seat PART NO.
KIT SIZE	Part No.	INCH	METRIC	Washer seat PART NO.	INCH	METRIC	Taper seat PART NO.
1/4-32 RC engines Glow plug	Kit p/n 0142SP note: includes 5 inserts	.180	04.57mm	01421	-----	-----	-----
KIT SIZE	Part No.	INCH	METRIC	Washer seat PART NO.	INCHES	METRIC	Taper seat PART NO.
M10x1.0 Standard Spark plug (notes)	Kit p/n 4010 note: Inserts NOT included	.360 .472 .600 .905	09.0 mm 12.0 mm 15.0 mm 23.0mm	40101 40102 40103 40105	----- ----- -----	----- ----- -----	----- ----- -----
M10x1.0 Spark plug with inserts (notes)	Kit p/n 4010-103 Included inserts
M10x1.0 Deep hole Spark plug kit :Honda Note:	Kit p/n 4010E note: Inserts NOT included
KIT SIZE	Part No.	INCH	METRIC	Insert PART NO.	INCHES	METRIC	Taper seat PART NO.
M10x1.0 Glow plug commonly used in dodge sprinter vans (notes)	Glow Plug p/n 4010GP note: includes 5 inserts	.472	12.0 mm	40102	-----	-----	-----
KIT SIZE	Part No.	INCHES	METRIC	Insert PART NO.	INCHES	METRIC	Taper seat PART NO.
M10x1.25 Glow Pug DuraMax 6.6L Diesel 2001-2010 (link)	Kit p/n 5000 note: includes 5 inserts	.650	16.2 mm	10123ANF aluminum	-----	-----	-----
KIT SIZE	Part No.	INCH	METRIC	Washer seat PART NO.	INCHES	METRIC	Taper seat PART NO.
M12x1.25 Standard (notes)	Kit p/n 4212 note: Inserts NOT included	.360 .600 .690 .866	09.0 mm 15.0 mm 17.5 mm 22.0mm	42121 42123 42125 42127	.827	21.0 mm	42126 Note click here: Ford Insert
M12x1.25 Standard includes 6 inserts (notes)	Kit p/n 4212-125 note: includes 5 inserts
M12x1.25 Deep hole (notes)	Kit p/n 4212E note: Inserts NOT included
M12x1.25 2008 & Up Ford 3 valve Spark plug kit (notes) sp509 sparkplugs	FORD KIT p/n 4212H note: includes 5 inserts
KIT SIZE	Part No.	INCH	METRIC	Washer seat PART NO.	INCHES	METRIC	Taper seat PART NO.
M14x1.25 Short kit for 8mm length (notes)	Kit p/n 14125F note: includes 5 inserts	Inch Length .270 .320 .370 .430 .530 .600 .660 .905	Metric Length 07.0 mm 08.0 mm 09.4 mm 11.0 mm 13.5 mm 15.0 mm 16.8 mm 23.0 mm	Washer Seat Part No. 44121 44123 44125 44127 44113 44129 44111 44112	Inch Length .270 .400 .620 .660 .950	Metric Length 0 7.0 mm 10.0 mm 15.7 mm 16.8 mm 24.0 mm	Taper Seat Part No. 44181 44183 44185 44186 44187
M14x1.25 Spark plug STANDARD (notes)	Kit p/n 4412 note: Inserts NOT included				Inch Length .270 .400 .620 .660 .950	Metric Length 0 7.0 mm 10.0 mm 15.7 mm 16.8 mm 24.0 mm	Taper Seat Part No. 44181 44183 44185 44186 44187
M14x1.25 Spark plug DEEP HOLE (notes)	Kit p/n 4412E note: Inserts NOT included				Sealer required! for all taper seat inserts p/n 6020
M14x1.25 Imports sparkplug thread repair (Detail notes)	Kit p/n 4412E-111 note: Includes 5 Inserts	Spark Plug thread repair kit for Imports Used in 3/4 reach gasket style spark plugs commonly used in Toyota, Lexus, Honda, Acura, Bmw, Mercedes-benz, VW, Audi, Kia, Mini Cooper and others that have a deep reach spark plug. First time repair only. This kit includes 5 inserts p/n 44111
M14x1.25 Domestic spark plug thread repair (Detail notes)	Kit p/n 4412E-187	Taper Seat Spark Plug thread repair kit for Domestic Vehicles: General Motors, Chrysler, GMC and others. First time repair only. Includes: .945 - 24mm, .708 -15.7mm, .400 - 10mm reach Taper Seat inserts. M14x1.25 Taper Seat spark plug repair tooling also includes a mini wrench to use in tight areas. Sealer is included. Inserts included 2 Each p/n 44187, p/n 44185 & 2 inserts 44183.
M14x1.25 Extended tooling with assorted length inserts. (notes)	Kit p/n 4490	Assorted length inserts are included washer seat & taper seat p/n 4490. This kit includes extended length tooling and a mini wrench which can help with clearance issues. Using the mini wrench with the extended tooling makes the tooling the same overall reach as the short version 4412. Washer style (2) p/n 44125 9.4mm, (2) p/n 44127 11mm, (2) p/n 44113 13.5mm, (2) p/n 44129 15mm, (2) p/n 44111 16.8mm, (2) p/n 44112 23mm. Taper style inserts (2) p/n 44183 10mm, (2) p/n 44185 15.7mm, (2) p/n 44186 16.8mm, (2) p/n 44187 24mm (link to kit details)
M14x1.25 Ford Spark Plug repair 2 and 4 valve	Kit p/n 5553 note: Includes 5 Inserts	PROFESSIONAL FORD SPARK PLUG M14x1.25 THREAD REPAIR KIT p/n 5553

M14x1.25 Inserts are also available in aluminum click here: normally used in racing applications, where Nitromethane is used as a fuel. Steel inserts typically have a higher tensile strength than aluminum.
KIT SIZE	Part No.	INCH	METRIC	Washer seat PART NO.	INCHES	METRIC	Taper seat PART NO.
M18x1.5 note: Inserts NOT included	Kit p/n 4815	.400 .720	10.0 mm 18.3 mm	48151 48153	.400	10.0 mm	48181
KIT SIZE	Part No.	INCHES	METRIC	Washer seat PART NO.	INCHES	METRIC	Taper seat PART NO.
7/8 - 18 note: Inserts NOT included	Kit p/n 4718	.430 .780 1.000	11.0 mm 20.0 mm 25.4 mm	47181 47183 47185	----- -----	----- -----	----- -----
